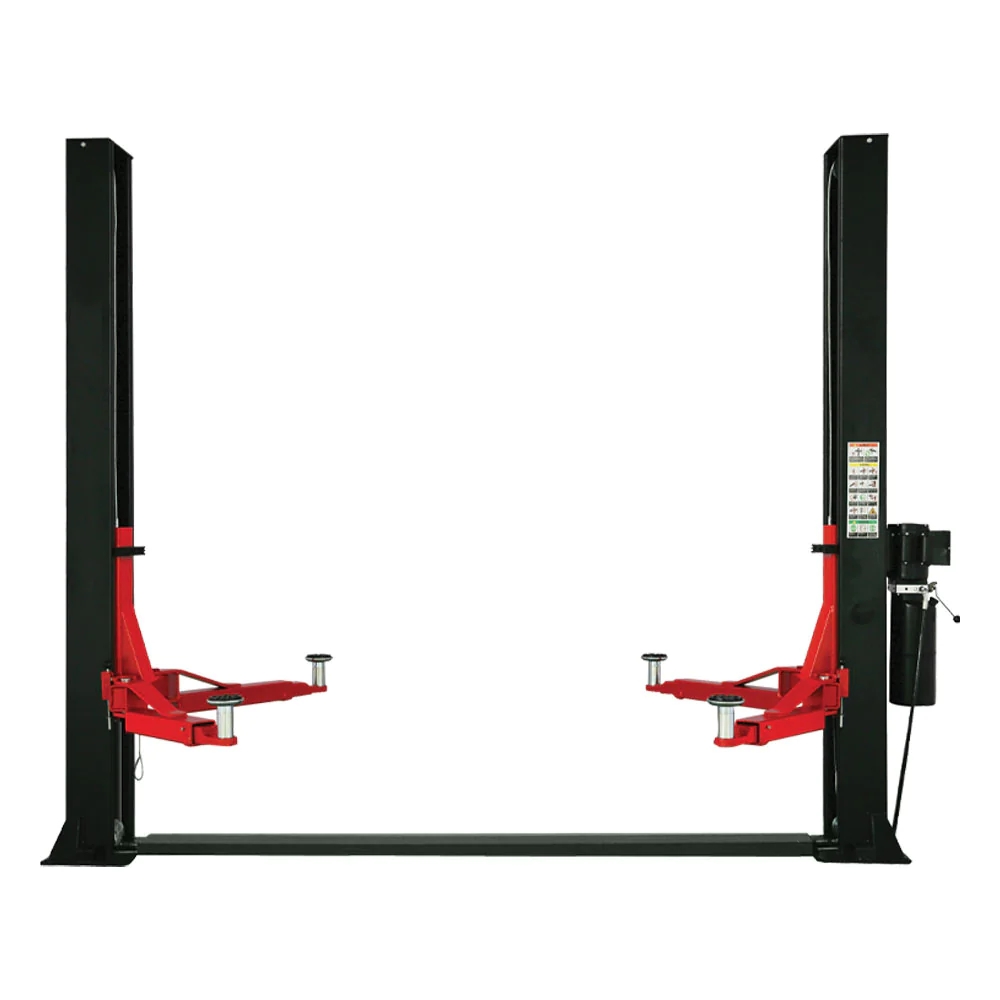

Electro-hydraulic two-post lift with manual locks, 4 t (AQ40M, AUTOEQ)

Two-post electro-hydraulic vehicle lift AutoEQ AQ40M with manual locking on both sides and 2-fold arms. A twin-cylinder, wire-rope balanced system ensures smooth raising and lowering; descent speed is adjustable via the throttle. Asymmetric columns provide wider drive-through clearance, with a 24 V limit switch, rubber door protectors, toe-guard rails and four 120 mm height adapters. CE approved.

• Lifting capacity: 4000 kg
• Lifting height: 105–1900 mm
• Short arms (2-fold): 760–1080 mm
• Long arms (2-fold): 900–1400 mm
• Lifting time: 45 s
• Overall height: 2826 mm
• Width between columns: 2820 mm
• Oil tank capacity: 12 L
• Motor power: 2,2 kW
• Power supply: 380 V / 50–60 Hz / 3 fazės
• Locking: manual, both sides
• Weight: 560 kg
• Origin: China
