Code 8102046894

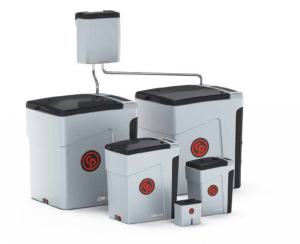

Oil and condensate separator CPP 31 CARB METRIC (8102046894, CHICAGO PNEUMATIC)
Description
Activated carbon oil/moisture separator for separating mineral oils (Rotair, Rotair Plus, Fludtech, AirMax, etc.)
Max. flow: 113 m3/h (with dryer and filters), 90 m3/h (without dryer and filters);
Condensate inlet: 6mm (1/4");
Water outlet: 10mm (3/8");
Relative air humidity: 60%
Air inlet temperature: 25°C/77°F
Running hours per day: 12 h;
Effective working pressure: 7 bar/102 psi
Dimensions: 250x147x216 mm;
Weigth: 1.5 kg;
