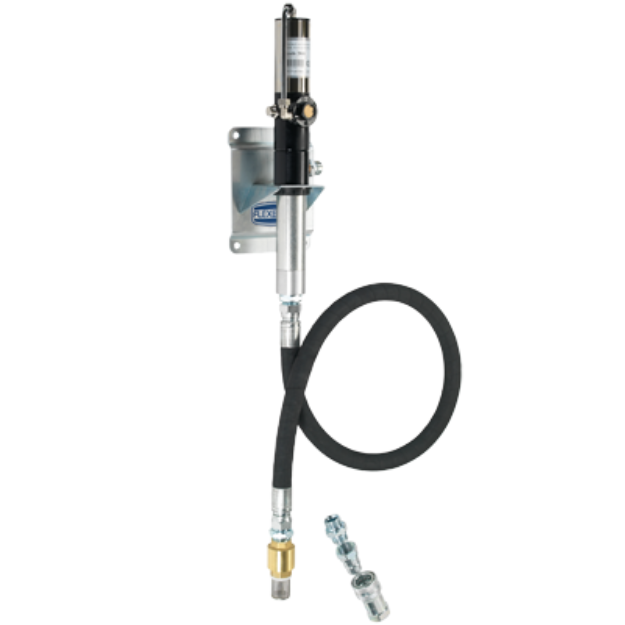

Pneumatic Waste Oil Draining and Transfer Kit 2046 – 2:1 Ratio Flexbimec

Waste oil draining and transfer kit, designed for use in workshops and service areas. This kit allows for the clean and efficient extraction and transfer of used engine, transmission, or differential oil from collection containers to central storage tanks. The system operates using compressed air and requires no electrical power, while the wall-mounted design saves space in the workshop.
Key features:
Pneumatic pump (2:1 ratio) – single-acting operation, works with air pressure from 2 to 8 bar
Wall mounting bracket included – for convenient and space-saving installation
1.5 m rubber suction hose (ø 1") – equipped with a stainless steel foot valve and strainer to prevent debris
Smooth oil transfer via a 3/4″ BSP (male) outlet connection
Suitable for used oil and other low- to medium-viscosity fluids
Technical data:
Compressed air supply: 2–8 bar
Delivery rate: 30 l/min
Compression ratio: 2:1
Max outlet pressure: 16 bar
Compressed air connection: 1/4″ BSP (female)
Lubricant outlet connection: 3/4″ BSP (male)
Weight: not specified
