Description

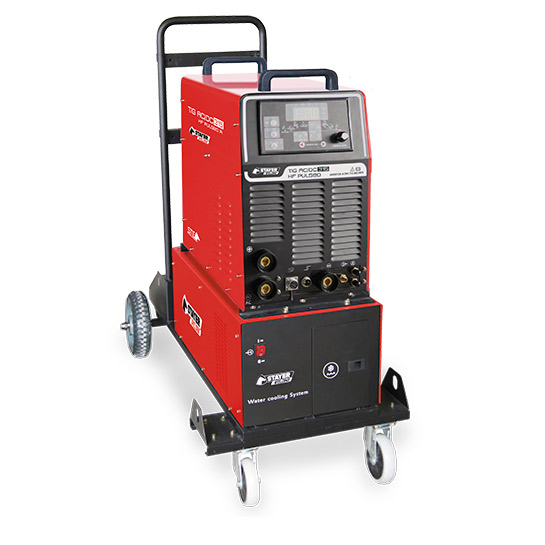

AC/DC TIG Pulsed Welding Machine – 315A TIG AC/DC 315 HF P
A professional TIG welding machine designed for welding stainless steel, aluminum, alloys, and all types of steel. Adapted for high-temperature work with water cooling.
Advantages:
Maximum current: 315 A, duty cycle – 60%.
Intuitive control panel with STAYER software.
HF–HV ignition, 2T/4T modes, pulse and DC modes, AC mode for aluminum welding.
Slope, gas flow, and post-flow control; spot welding functionality.
Water cooling through a refrigerator for high-temperature environments.
Special connector for pedal control (optional).
Robust construction with double ventilation and EMI filter.
Compatible with generators (+/-17% voltage tolerance).
Technical specifications:
Max current: 315 A
Power supply: 3-phase x 400 V
Electrodes: 1.6–6 mm
Tungsten: 4 mm
Generator: 5–8 kVA
Dimensions: 76 x 115 x 51.5 cm
Weight: 71 kg
Included: 5 m TIG torch, ground and electrode cables.
