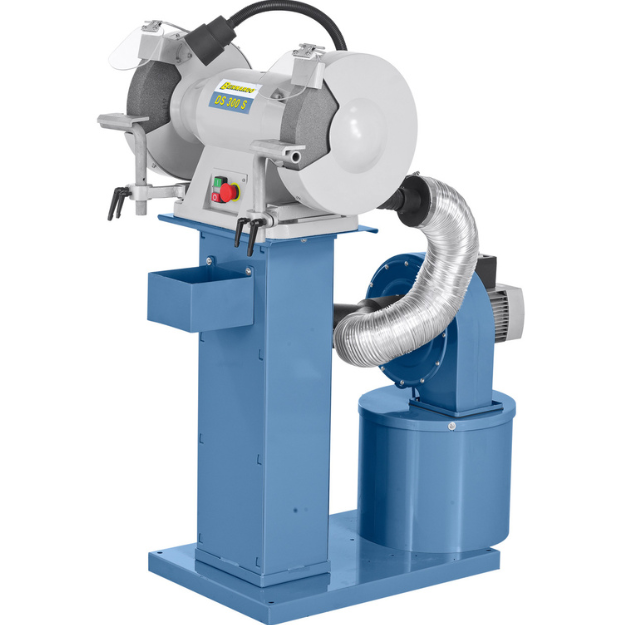

The Bernardo DS 300 S / 400 V industrial bench grinder, equipped with the MSA 500 dust extraction unit

This set, designed for high-quality and clean metalworking, includes a dust extraction unit with water tank and a professional double-disc bench grinder. The extraction system, equipped with a large chip tray and integrated cooling, ensures a clean and safe working environment.
Dust Extraction Unit – Technical Specifications:
Airflow capacity: 1275 m³/h
Dust extraction outlets: 2 x 35 mm (internal), 2 x 50 mm (external)
Motor power: 0.37 kW
Voltage: 400 V
Dimensions: 400 × 285 mm (base), height – 810 mm
Weight: approx. 50 kg
Included: filter bag, dust tray, 2 aluminum tubes Ø100 mm, 2 reducers 100/35 mm, Y-adapter 125 mm / 2×100 mm, water tank

Bench Grinder – Technical Specifications:
Grinding wheels: Ø 300 × 50 mm, grit 36 / 80
Wheel bore diameter: 75 mm
Speed: 1450 rpm
Motor power (S1): 2.2 kW, (S6): 3.0 kW
Voltage: 400 V
Dimensions: 700 × 500 × 460 mm
Weight: approx. 84 kg
Included: coarse and fine grinding wheels, protective glasses, adjustable workpiece support, LED work light
