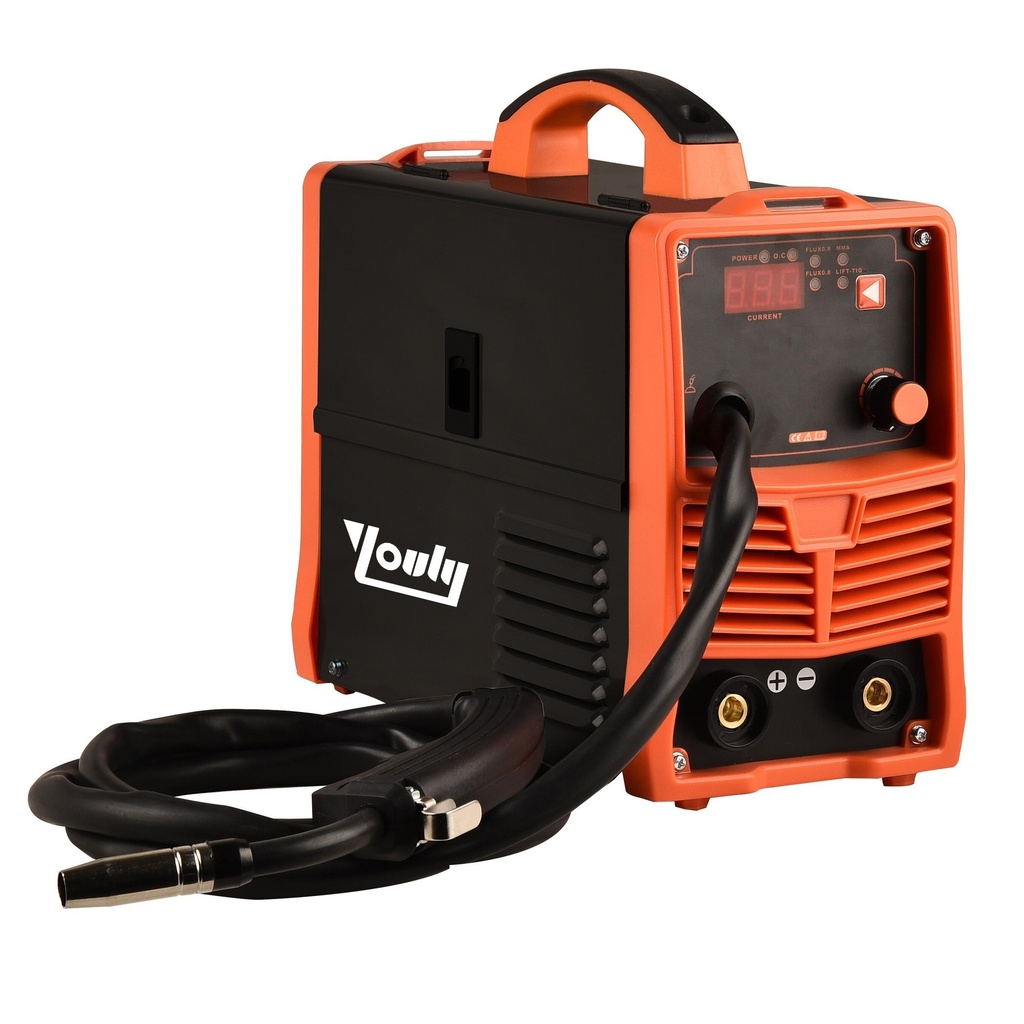

⬡ Multifunctionall inverter welding machine semi automatic (IGBT) MIG/MAG/MMA/TIG (YLMIG135A, YOULI)

Function: welding with wire Ø0.8 - 1.0 mm, with electrode Ø1.0 - 3.2 mm / tungsten electrode in the inert gas Ø1.0 - 2.0 mm
In the set included: power supply cable 2 m, MIG / MAG wire torch 2 m, MMA electrode holder 2m, TIG torch 4 m, ground wire 1.6 m, welding mask and brush

Supply voltage 230 V, 50 Hz
Rated input current MIG 16A /MMA 19 A / TIG 11 A
Output current MIG 30 – 135A, MMA 20 – 135 A / TIG 10 – 135
Rated input voltage MMA 30 V / TIG 20 V
Duty cycle 60 %
Power factor 0.73
Efficiency 0.85 %
Gas TIG - Ar
Gas-free welding mode only!
Max size of the wire reel Ø100 mm (1 kg)
Wire feed adjustment range 2 - 13 m/min
Protection grade IP21
Electrical insulation class F
Dimensions 345 x 155 x 320 mm

Package size 415 x 260 x 380 mm
Weight 9 kg
CE conformity
