WOERDE · Kods E71TGS10

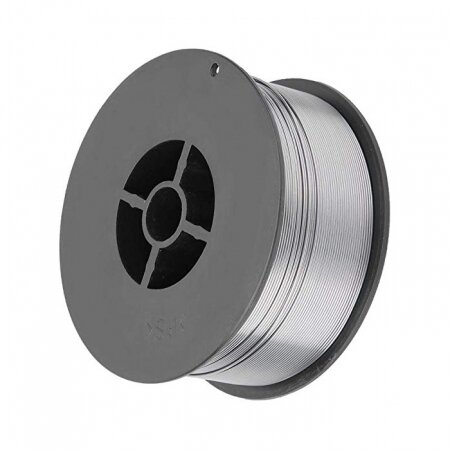

⬡ Self-shielded flux cored welding wire 0.8mm 1.0kg (E71TGS10, WOERDE)
| Ražotājs: WOERDE |
Apraksts
Open-arc flux cored wire (self-shielded) designed for welding thin carbon and carbon-manganese steels in all positions
FLUX
Classification: AWS A5.20: E71T-GS, Approved by DB TUV, under gas C1,M2,M3 ISO 14175, Certified by CWB to CSA standard W48
Polarity DC +
Chemical properties: C 0.08 %; Si 0.14 %; Mn 0.60 %; P 0.012 %; S 0.009 %; Al 1.22 %
Mechanical properties Re 482 Mpa; Rm 554 Mpa; A 29 %; KV -30°C 96 J
Recommendations: wire Ø 0.6 mm; thickness < 5 mm; voltage 16 ► 28 V; current 60 ► 200 A
Gas protection in compliance with EN ISO 14175; 100% CO2 (C1) or Argon / CO2 (M21, 8 < 20% CO2)
