T-MAX · Kods ATWPRO4500

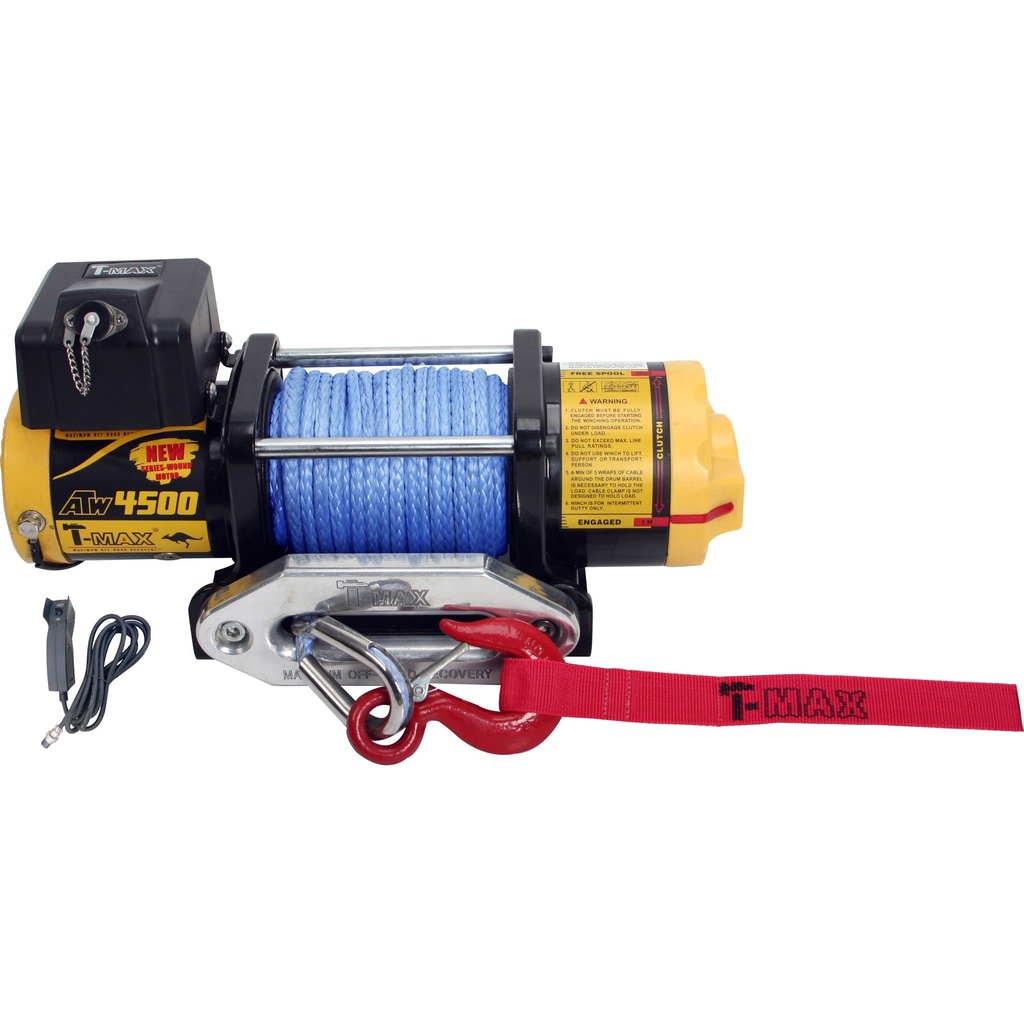

⬡ Elektriskā vinča 12V 4500 Lbs / 2040 kg (sintētiskā virve) (ATWPRO4500, T-MAX)
| Ražotājs: T-MAX |
Apraksts
Rated line pull 4500 Lbs (2041 kg)
Motor 12 V 1.36 hp. Series Wound
Gear 189:1
Braking automatic In-The-Drum EBT Eccentric block type
Wire rope Ø5.5mmx15m (synthetic rope)
Drum size Ø 52 mm x 119 mm
No-load current 650 CCA
Mounting bolt pattern 76 x 169 mm
Overall dimensions 372 x 120 x 181 mm
Weight 11.8 kg
