GYS · Kods 085923

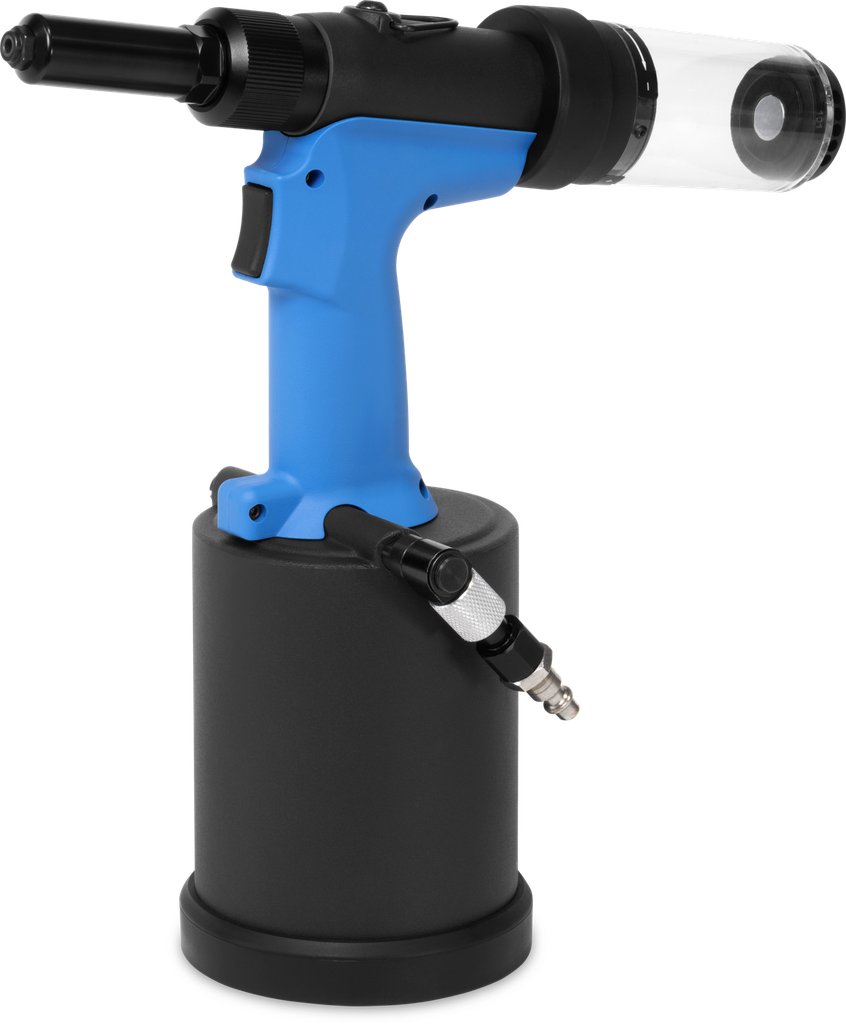

Hidropneimatiskā kniedētājpistole HR185 (085923, GYS)
| Ražotājs: GYS |
Apraksts
HR 185 hydropneumatic riveter, designed for Ø 4.8 to 6.4 mm structural rivets, offering a pulling force of 18,500 N and incorporating an automatic rod suction system. Features - For setting Ø 4.8mm to 6.4mm rivets. - Ergonomic grip thanks to handle. - Maintenance-free. - Supplied with a nozzle for Ø6.40mm rivets and a nozzle for Ø4.80mm rivets. - Features a rod collector at the rear thanks to its reservoir. Suction max Ø 4.5 Ø 4.8/6.4 Rivet size The nozzle orifice Min. air pressure Max. air pressure Working force 5 bar 7 bar 18 500 N Stroke Ød For POP rivets Ø 4.8 mm Ø 6.4 mm ØD COMPATIBLE RIVETS Ø 3.3+0.10 mm Ø 4.5+0.10 mm Max. power (6 bar) 0/6,5mm 16900-23670N H 32.7 x L 2.1 cm
