Description
Engine (motor) power 4 kW (air cooled)
Max. engine (motor) rotations 3600 min⁻¹
Engine type CP170F 1 cylinder 4 stroke (capacity 208 cm³)
Max. capacity 30 m³/h
Max. head 25 m
Max. suction height 8 m
Water outlet diameter 2" (50 mm)
Max. water temperature 45 ˚C
Fuel tank capacity 3.6 l (unleaded petrol)
Oil tank capacity 0.6 l
Max. fuel consumption 1950 g/h
Oil type SAE 15W-40
Ignition plug type F7RTC
Acoustic pressure 82.1 ± 3.0 dB(A)
Acoustic power 95.4 ± 3.0 dB(A)
Dimensions 485x415x415 mm
Weight 25 kg

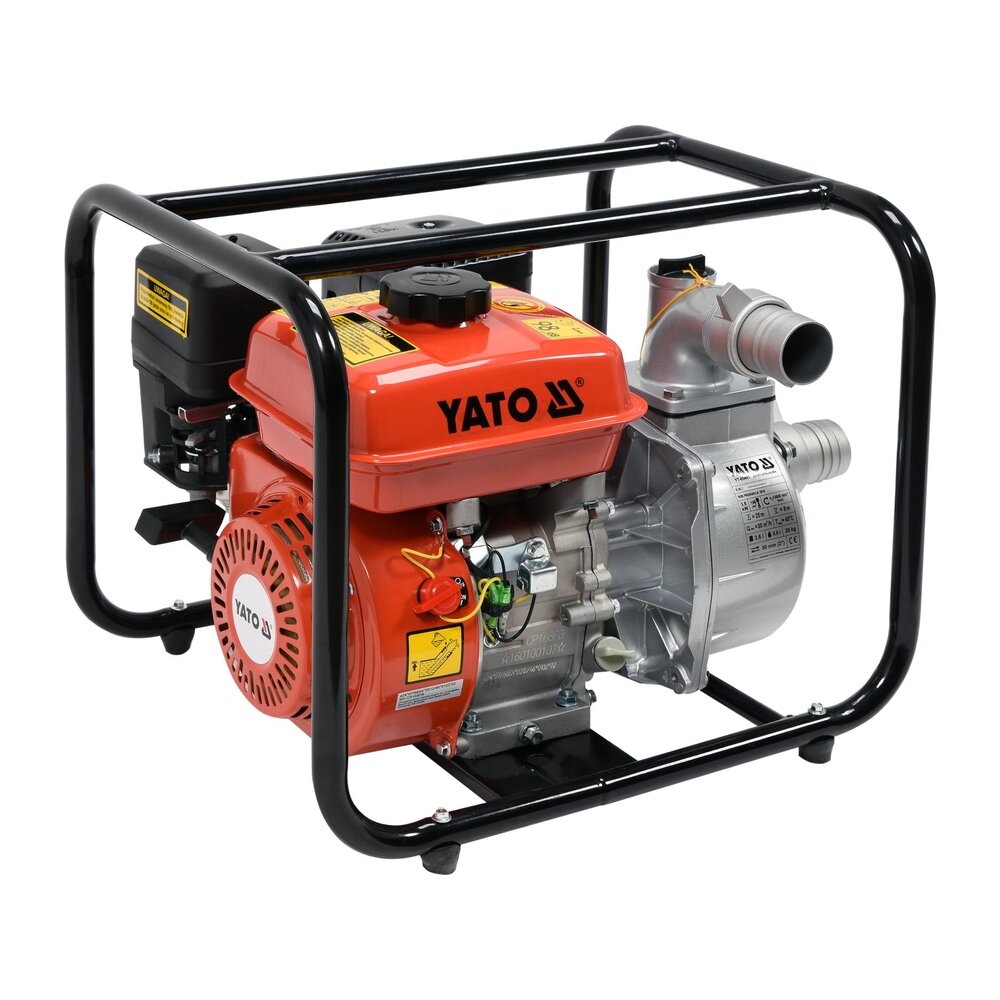

The pump is designed for pumping large amounts of water
For rescue work after accidents and natural disasters
The pump and the internal combustion engine are built into a steel frame to protect against damage and facilitate transportation
