Description
Power 2200 W
Force pressure 5 t
Max. pressure 20.6 MPa
Max. rotations 2800 min⁻¹
Voltage 220-240 V a.c.
Frequency 50 Hz
Log diameter 50-250 mm
Trunk length 200-520 mm
Dimensions 116x42.5x61 mm
Oil tank capacity 3.5 l
Working mode S3 25% 10 min
Nominal current 9.6 A
Acoustic pressure 75.8 ± 3.0 / 86.8 ± 3.0 dB(A)
Acoustic power 90.5 ± 3.0 / 93.0 ± 3.0 dB(A)
Electric insulation class I
Protection grade IP54
Weight 55 kg

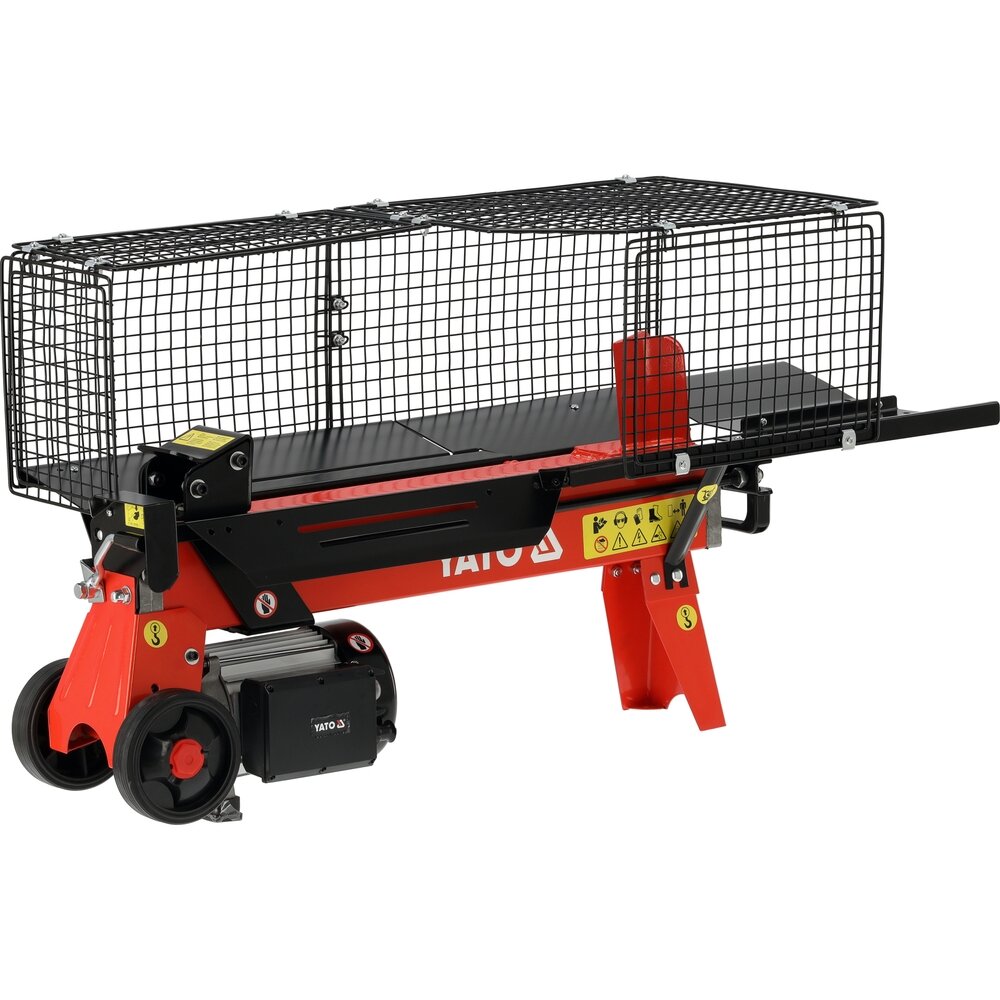

Efficient electric log splitter designed for preparing firewood in domestic conditions. Hydraulic system with a pressure of 20.6 MPa generates a force of 5 tons, allowing for effective splitting of logs without the need for an axe. The 230 V electric drive and 2200 W motor enable operation in a garage, workshop, or under a canopy, without emissions.
The design is adapted for regular intermittent work – stable frame, steel guard, and low vibration level increase operator safety and material control. The device handles logs up to 520 mm in length and up to 250 mm in diameter, making it suitable for preparing fuel for fireplaces, boilers, and home stoves.
