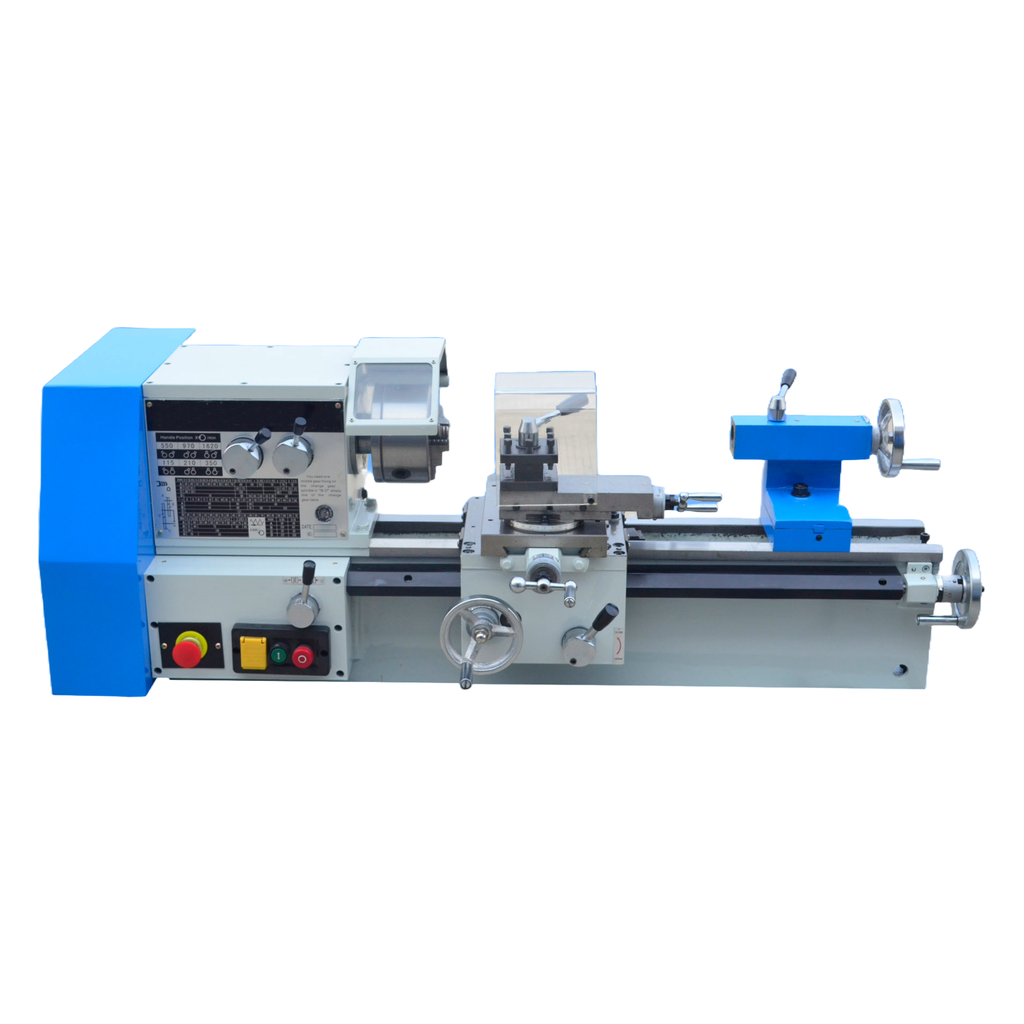

⬡ Metal turning lathe Ø27 mm 750 W (TBL25700, BOKY MACHINE)

Voltage/power 230V/0.37 kW
Distance between centers 700 mm
Center height above the frame 110 mm
Turning details max. Ø above the frame 250 mm
Turning details max. Ø above the saddle 110 mm
Spindle hole Ø 27 mm
Spindle taper bore MK4 (No.4 Morse)
Spindle speeds (6) 140 - 1800 rpm
Longitudinal feed/range (5) 0.04 - 0.2 mm/rev
Metric threads turning (17) 0.2 - 3.5 mm
Inch threads turning (17) 8 - 56"
Saddle travel in Z axis 115 mm
Max travel of tailstock barrel 50 mm
Center rear support cone MK3 (No.3 Morse)
Dimensions 1420 x 580 x 580 mm
Weight about 180 kg

With table, weight 29 kg, includes a 3-jaw lathe chuck Ø 125 mm
Table package dimensions 340 x 320 x 330 mm

The color of the goods may differ from that shown in the photos.
