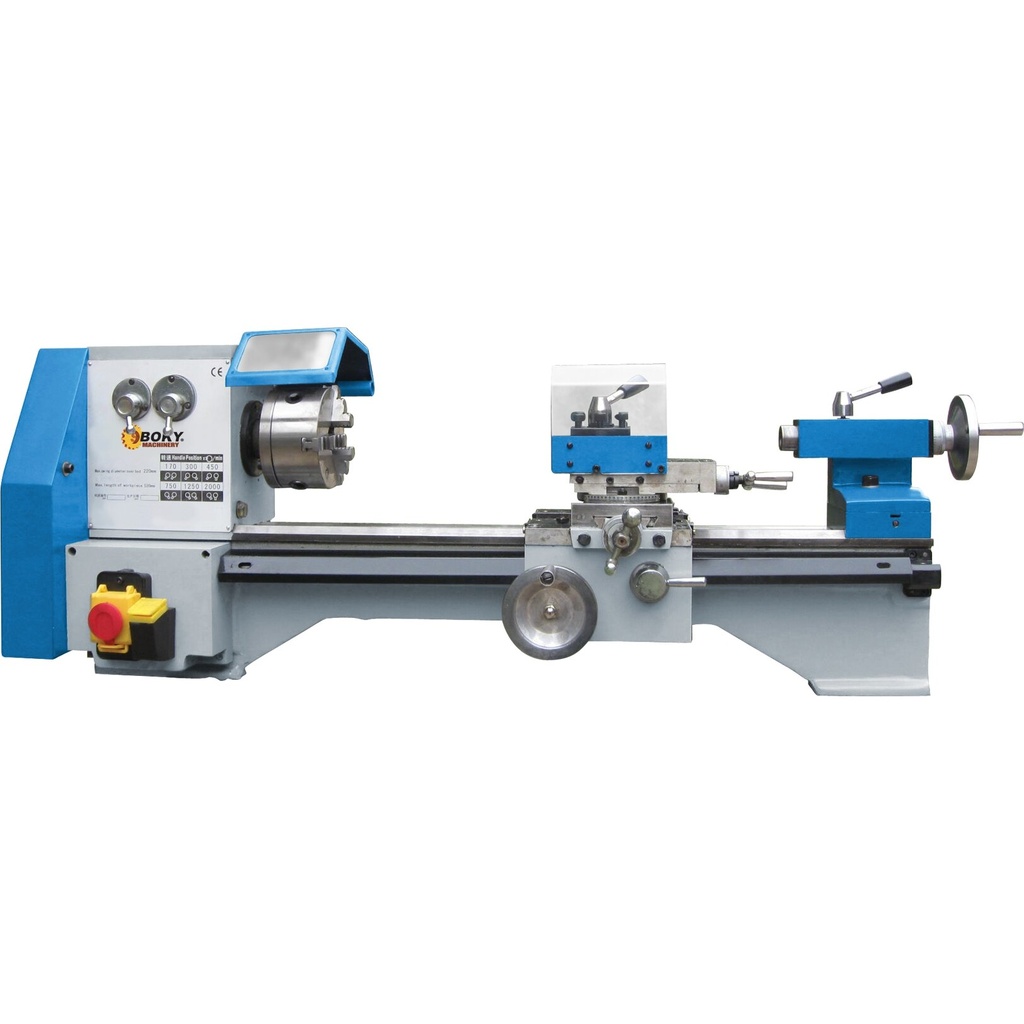

Metal lathe Ø20mm 550W (TBL20520, BOKY MACHINE)

Voltage/power 230V/0.37 kW
Distance between centers 520 mm
Center height above the frame 110 mm
Turning details max. Ø above the frame 200 mm
Turning details max. Ø above the saddle 122 mm
Spindle hole Ø 20 mm
Spindle taper bore MK3 (No.3 Morse)
Spindle speeds (6) 170 - 1950 rpm
Longitudinal feed/range (5) 0.04 - 0.2 mm/rev
Metric threads turning (17) 0.25 - 3.0 mm
Inch threads turning (17) 8 - 48"
Saddle travel in Z axis 115 mm
Max travel of tailstock barrel 50 mm
Center rear support cone MK2 (No.2 Morse)
Dimensions 1250 x 570 x 560 mm
Weight about 110 kg

With table, weight 29 kg, includes a 3-jaw lathe chuck Ø 125 mm
Table package dimensions 340 x 320 x 330 mm

The color of the goods may differ from that shown in the photos.
