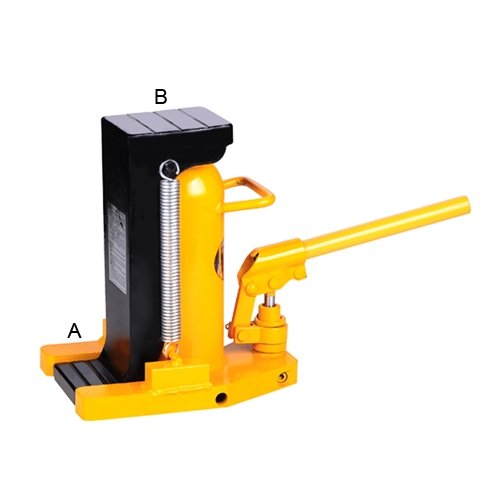

Description
Capacity A = 5 t
Capacity B = 10 t
Min height A = 20 mm
Max height A = 165 mm
Min height B = 283 mm
Max height B = 431 mm
Stroke 148 mm
Ram Ø 43 mm
Weight 24.0 kg
